..:: SB Chevy V8 ::..

Small Block Chevy V8

267, 305, 327, 350, 400 cid.

Firing Order

Cylinder Numbering Distributor Rotation

Rotor Under Cap Spins:

Clockwise

Torque Specs

always torque bolts in three equal increments

Bolts or Parts Lube or Sealer Torque to:
7/16 Main Caps (2 bolt) Engine Oil 70 ft-lbs.
7/16 Inner Main Caps (4 bolt) Engine Oil 70 ft-lbs.
7/16 Outer Main Caps (4 bolt) Engine Oil 65 ft-lbs.
3/8 Outer Main Caps (4 bolt) Engine Oil 40 ft-lbs.
3/8 Connecting Rod Engine Oil 45 ft-lbs.
11/32 Connecting Rod Engine Oil 45 ft-lbs.

Cylinder Heads

Engine oil

(blind hole)

Sealer

(water jacket)

65 ft-lbs.

Rocker Studs (screw-in) Engine Oil 50 ft-lbs.
Oil Pump Engine Oil 65 ft-lbs.
Oil Pan Engine Oil 12 ft-lbs.
Cam Sprocket (upper gear) Thread Locker 20 ft-lbs.
Timing Cover Engine Oil 6 ft-lbs.

Intake Manifold

(Cast Iron Heads)

Non- Hardening Sealer 30 ft-lbs.
Valve Cover Engine Oil 3 ft-lbs.
Exhaust Manifold Anti-Seize Lubricant 25 ft-lbs.
Spark Plugs No Lube or Sealer 20 ft-lbs.

Flexplate (Automatic)

Flywheel (Clutch)

Thread Locker 60 ft-lbs.
Clutch Pressure Plate Thread Locker 35 ft-lbs.

Centerbolt

(Harmonic Damper)

Engine Oil 60 ft-lbs.

Bellhousing

(Transmission to Block)

Engine Oil 25 ft-lbs.

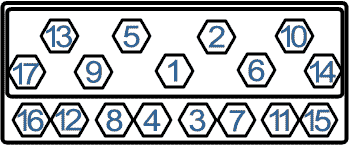

Head Bolt Tightening Sequence
